1941 Ford Super Deluxe Coupe

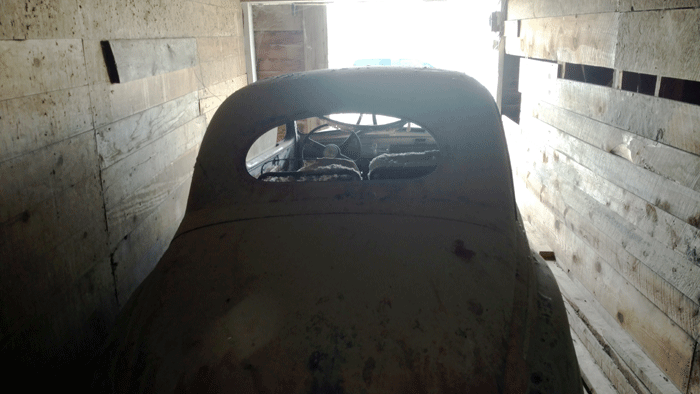

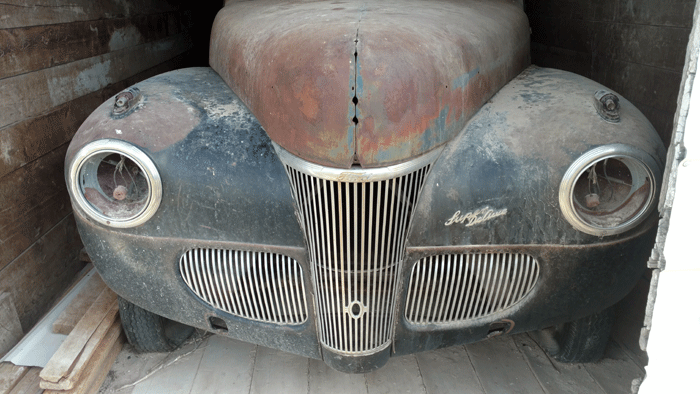

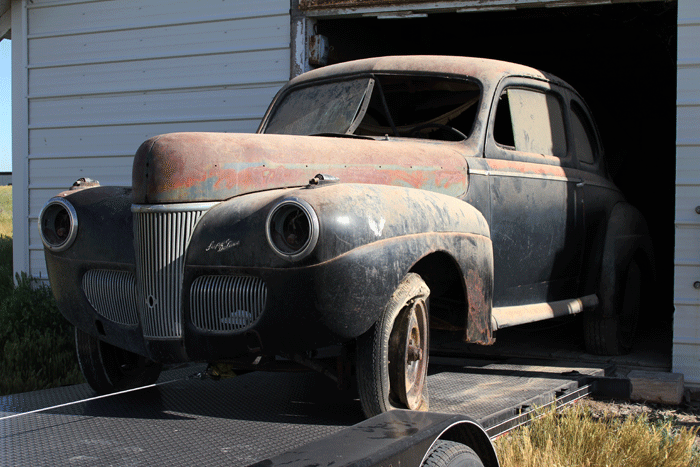

Asleep in a barn since 1962, daylight awakens this rare classic car

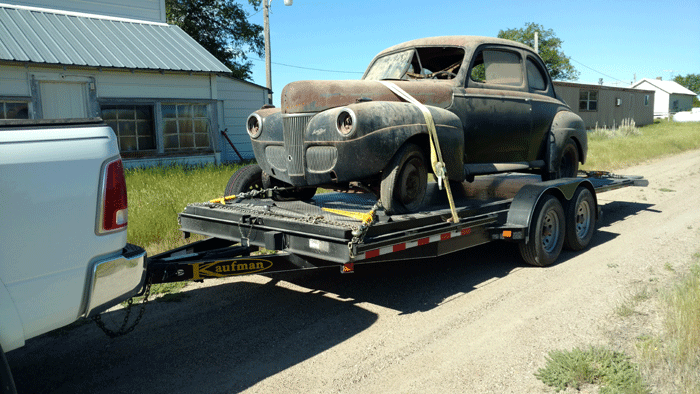

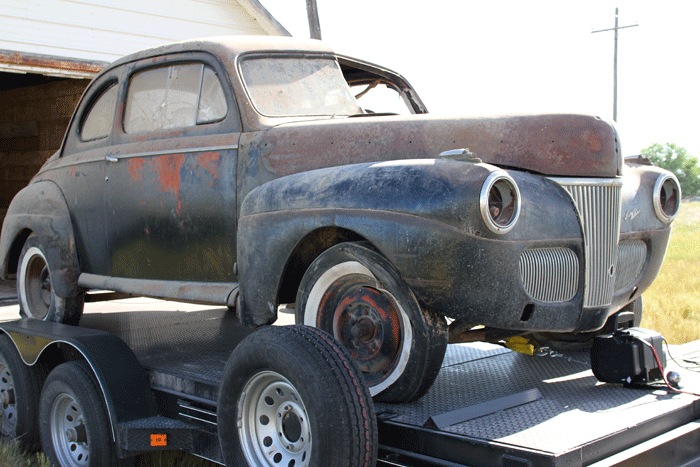

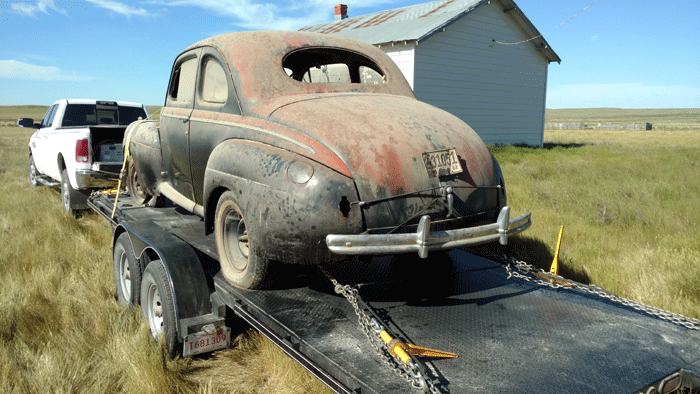

Rolling out into modern times with the aide of a winch

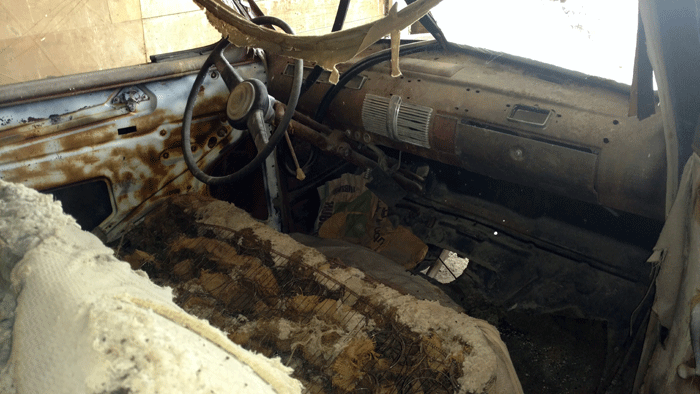

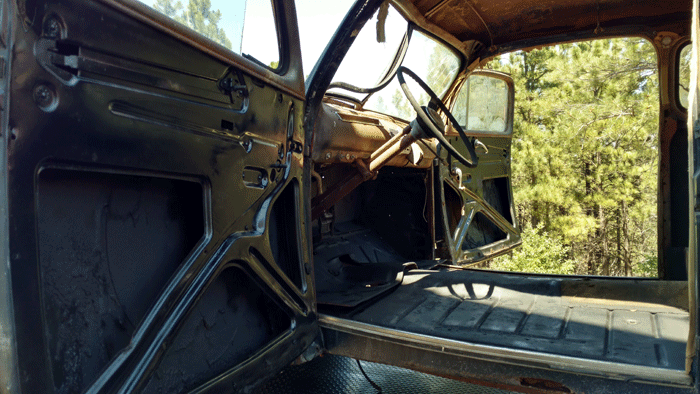

Six hours of labor to remove the 54 years of critter residue and destruction

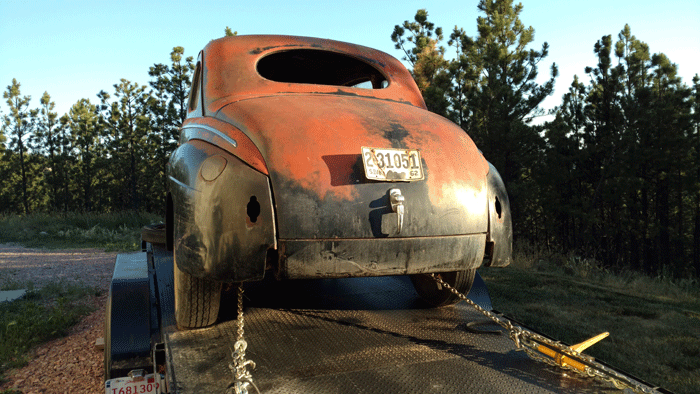

A true “barn find”  - soon to be back on the road with a modern drive-train and suspension. More to follow as progress is made...

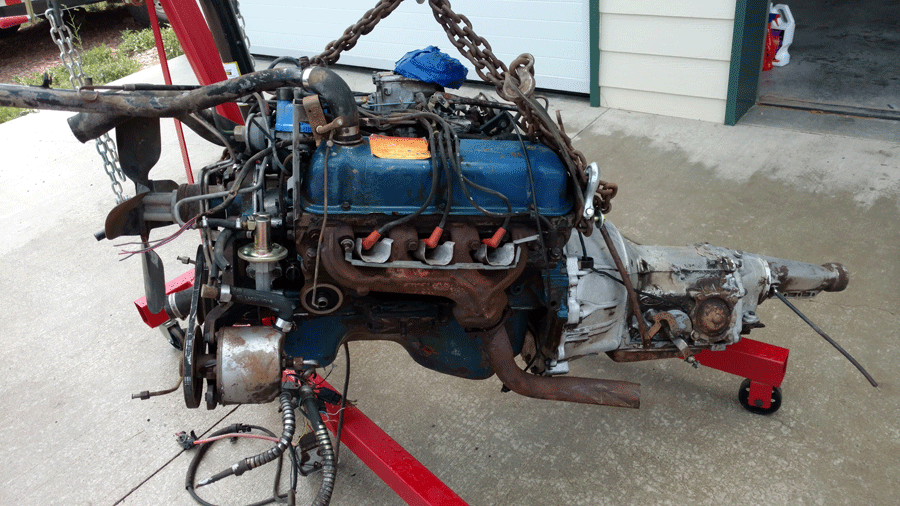

1974 Ford 302 V8 with a C4 transmission will become the new power-plant to propel the vehicle

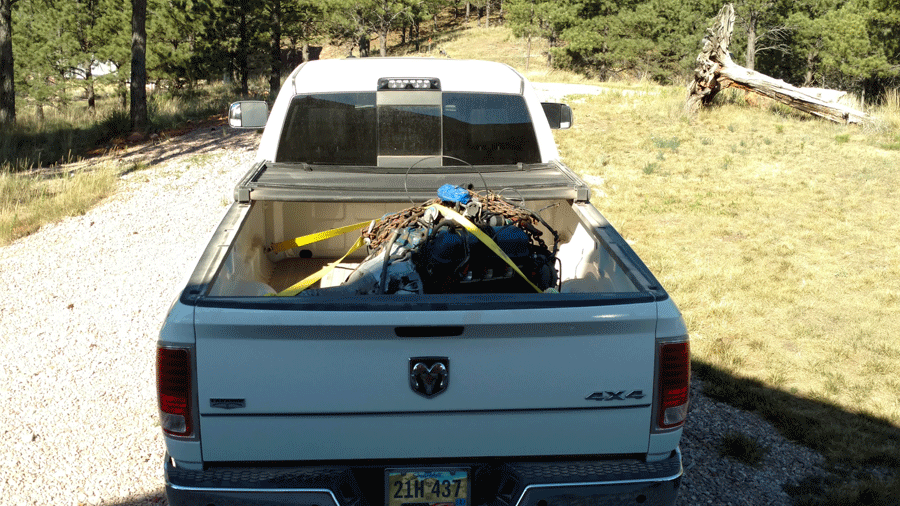

Off to RPM Engine Rebuilders and The Frame Garage to rebuild the motor and transmission

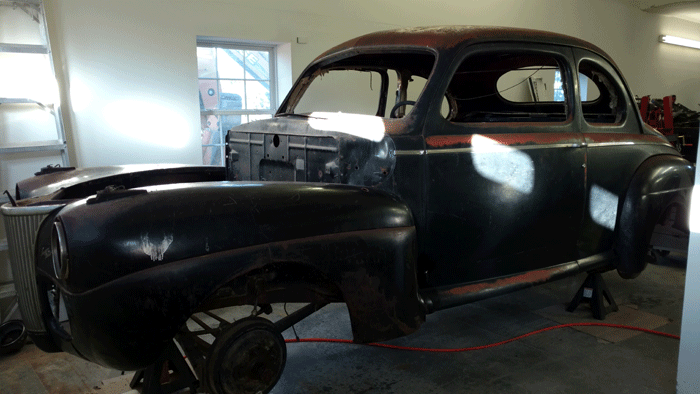

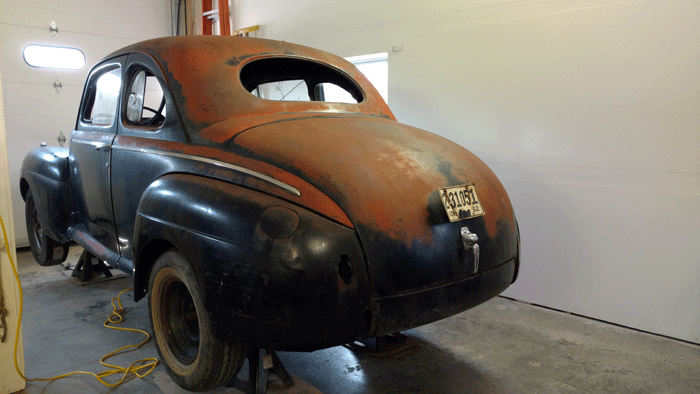

Tucked away in the garage, the dismantling begins. A new IFS will be installed, 4 link rear will replace the factory set up.

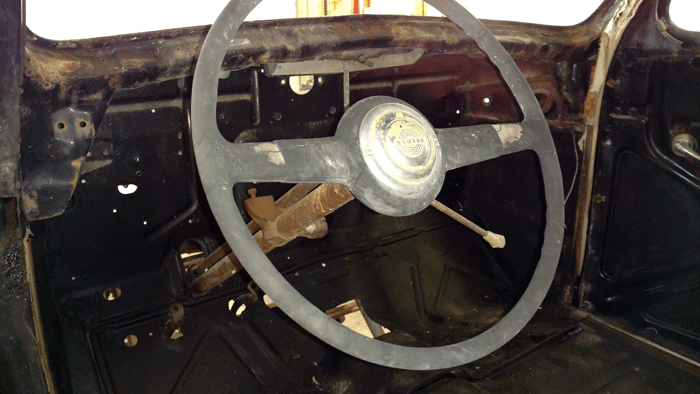

Dashboard removed - Dakota Digital instrumentation will replace the analog instrument panel along with a new wood grain paint scheme as it was in 1941

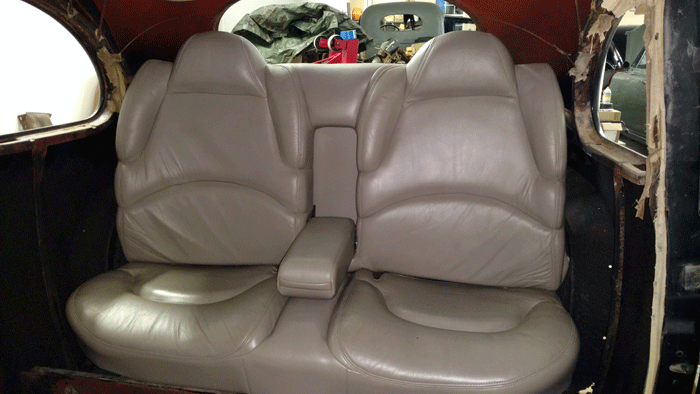

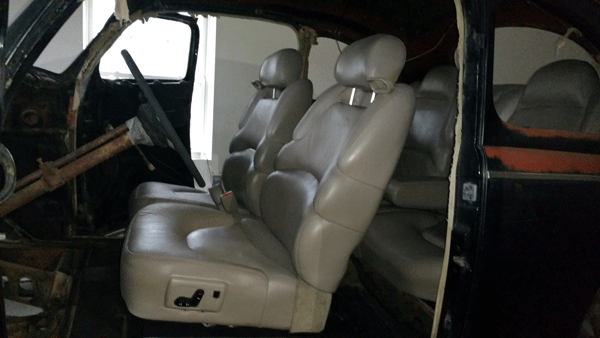

Interior from a 1997 Riviera will replace the original.

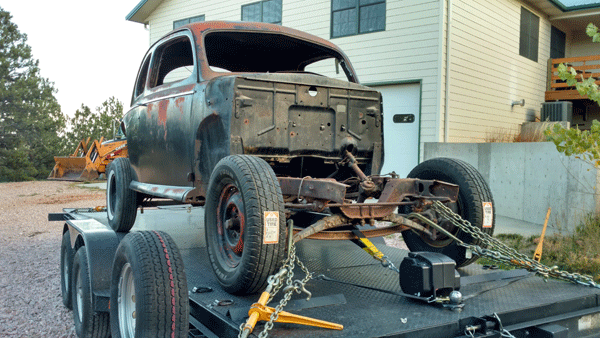

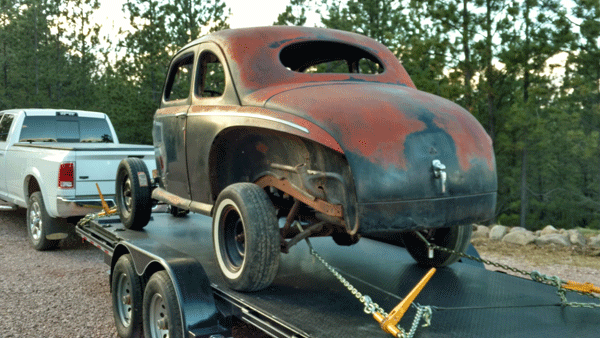

Off to Deadbroke Hot Rods to separate the cab and chassis

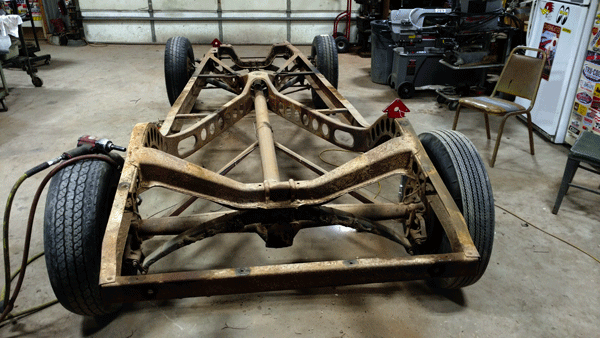

Frame will be blasted to remove rust

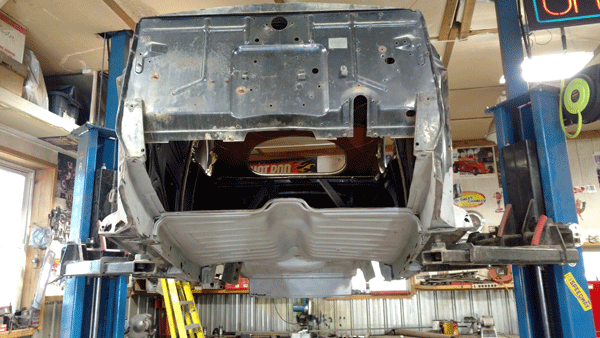

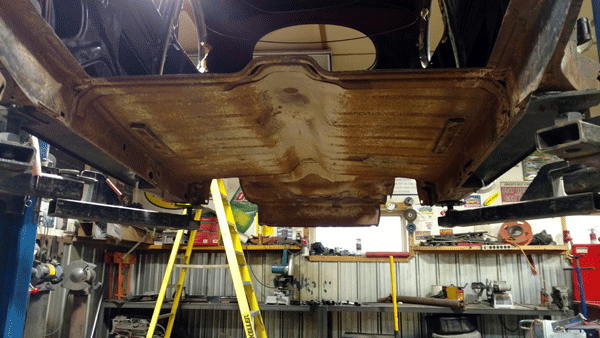

Underside will be blasted to find any rust and paint to preserve

Original suspension was remove to install an IFS

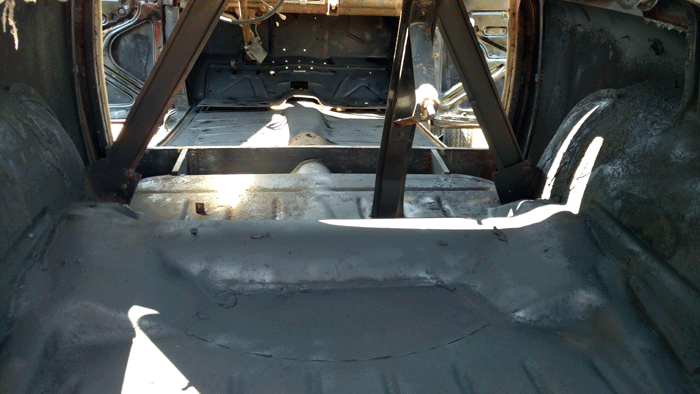

Underbelly cleaned up ready for repairs

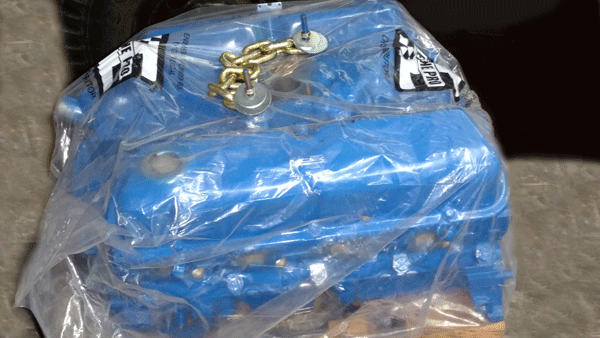

Rebuilt 302 with RV cam

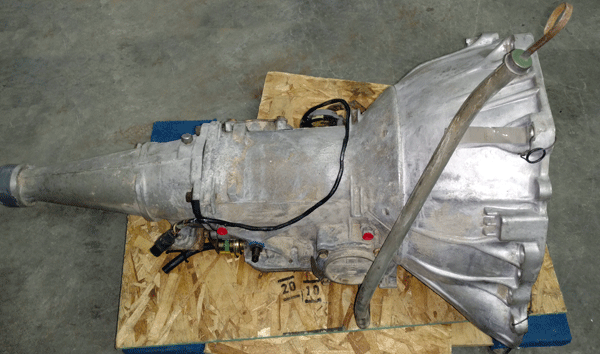

Rebuilt C4 transmission

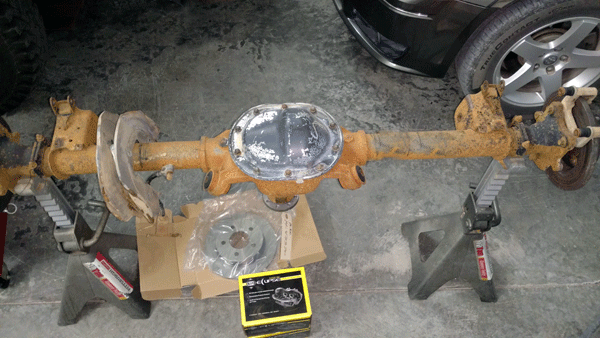

Rebuilt rear out of a 94 Mustang GT. 4 Link suspension with coil over shocks

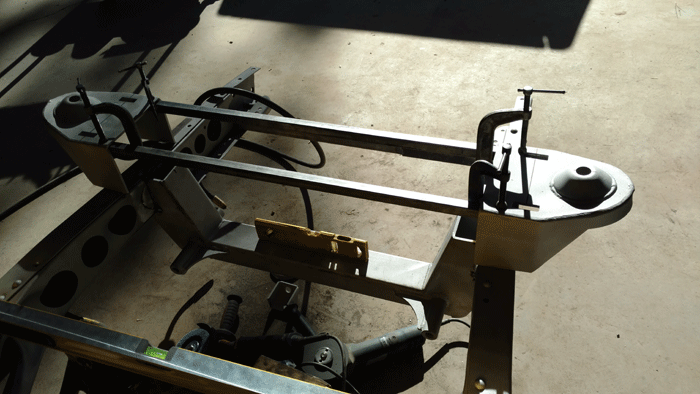

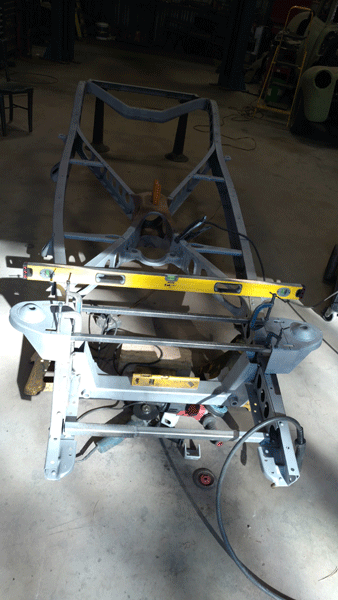

Mocking up the cross member

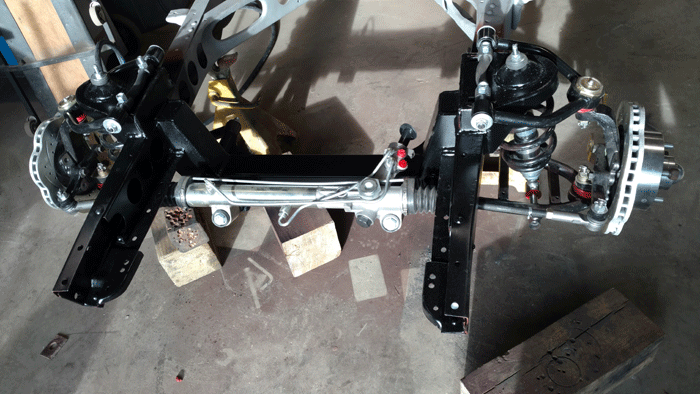

Mustang II type front suspension with power steering and disc brakes

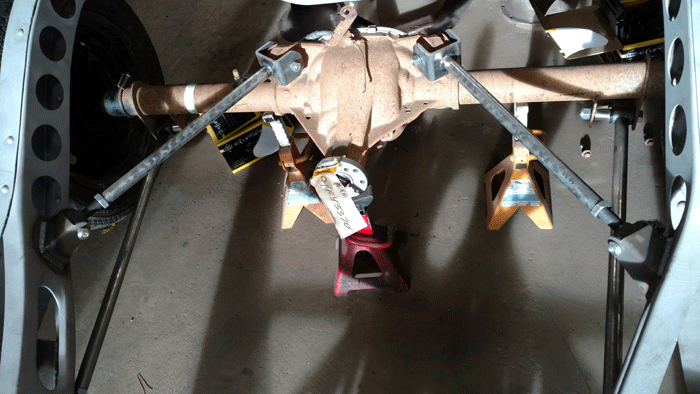

Four link rear installed

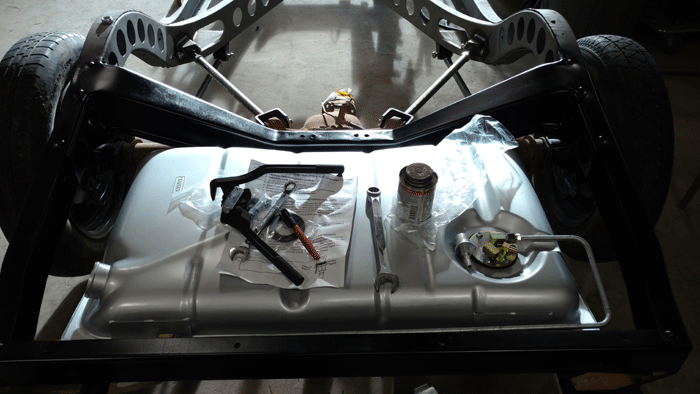

Fuel tank installed

Coil over shocks complete the 4 link Mustang GT rear

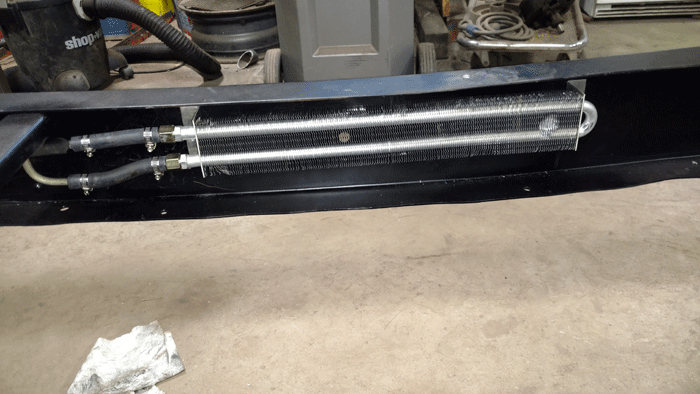

Transmission cooler

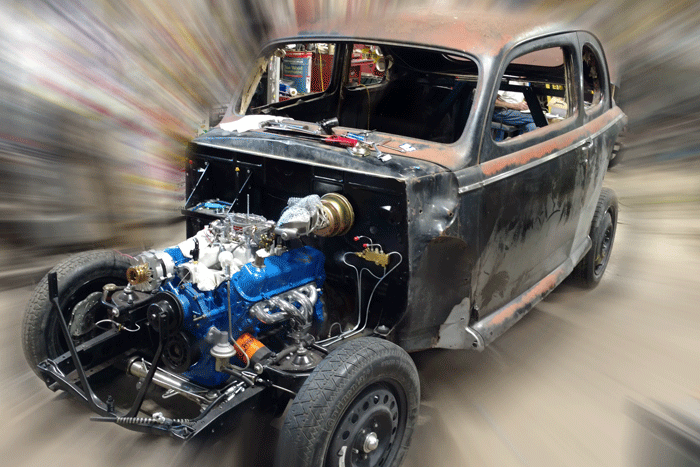

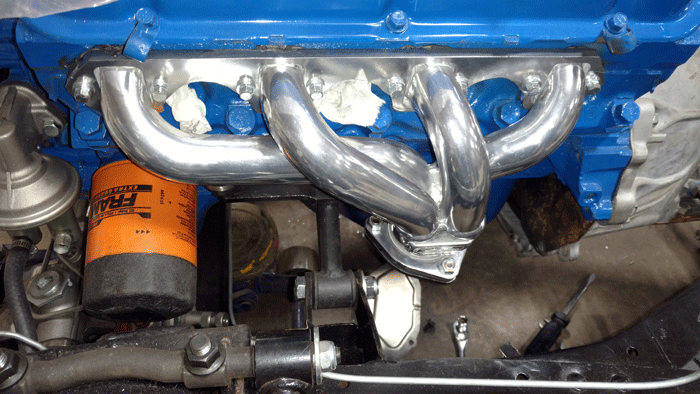

Ceramic coated Sandersen headers and a  high output starter are installed

New fuel pump, oil filter is a tight removal with the new suspension

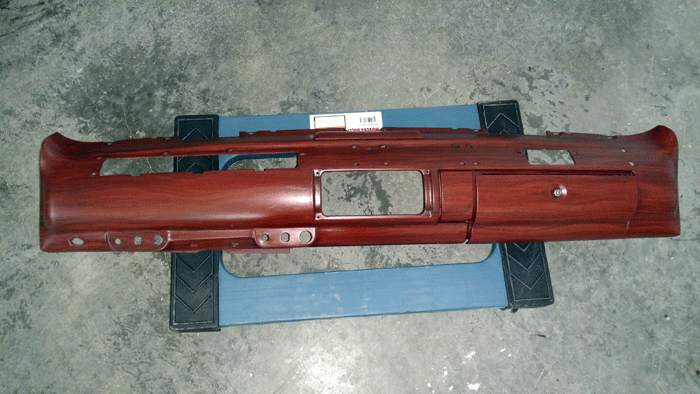

Faux mahogany woodgrain painted on the dashboard

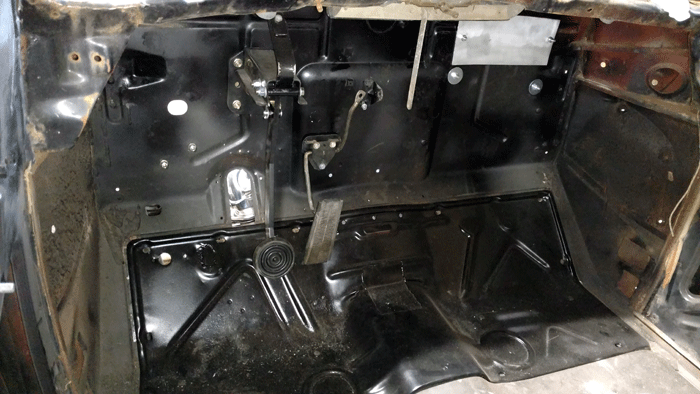

Floorboard fits perfectly - no modifications. Gas and brake pedals hung on the firewall.

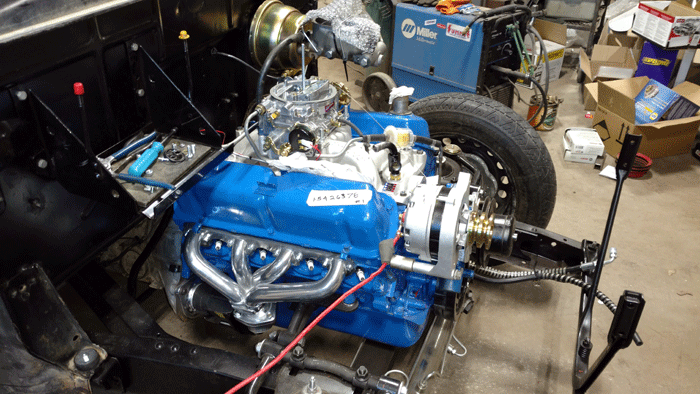

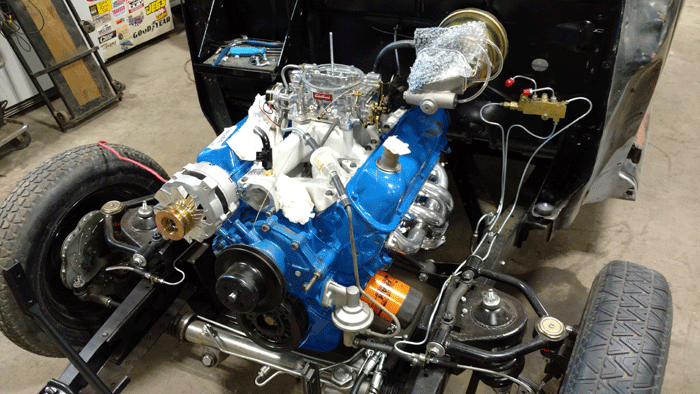

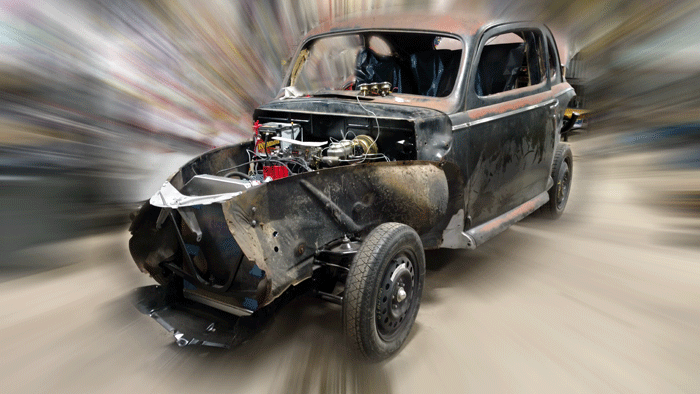

Battery tray, Edelbrock carb and intake manifold installed

Inner fenders mounted - they'll be removed, media blasted and painted then reinstalled

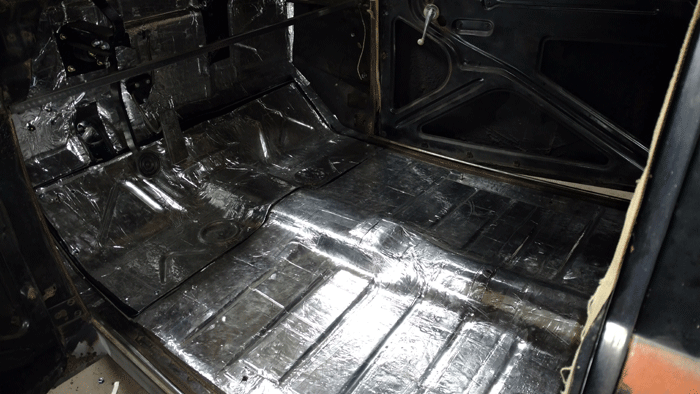

Boom Mat applied to firewall and floors

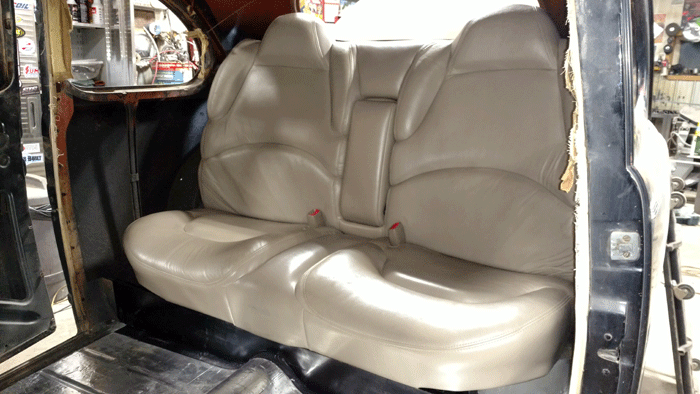

Rear seat secured

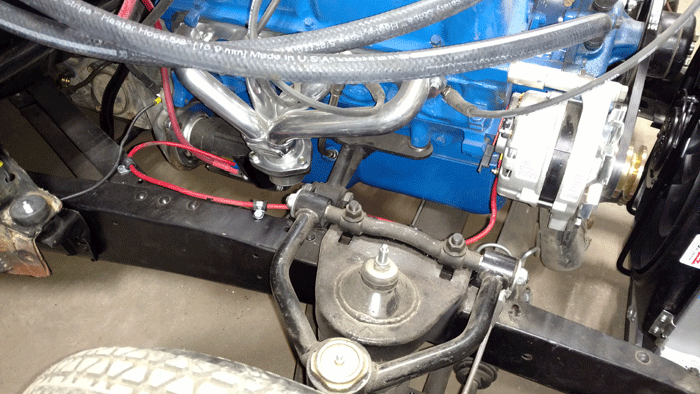

Starter and alternator wired

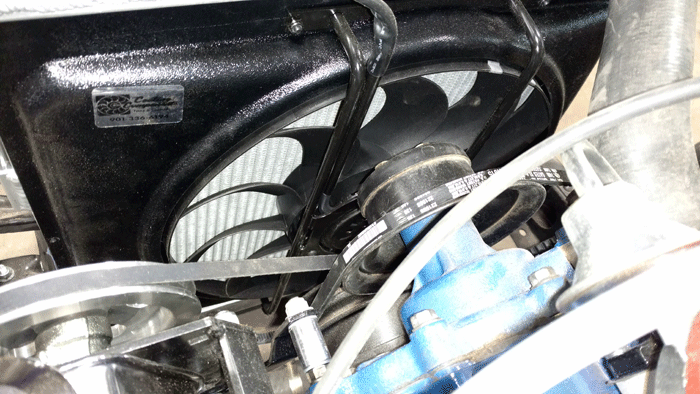

Electric fan mounted

Power steering pump installed

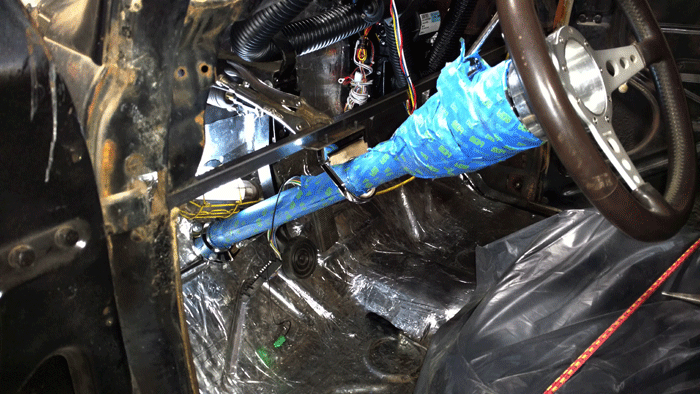

Steering column connected and mounted to a temporary support. Steering wheel is temporary.

Heater & defrost from Vintage Air
